Momentary and Latched Push Button Switch
Specifications:
Width: 6 HP / 1 Tile Unit
Depth: 30mm (1.18″)
Power cable: Tile Tail (3-pin)
Power +12V: 15mA
Power -12V: 0mA
1U Tile Specs
Description

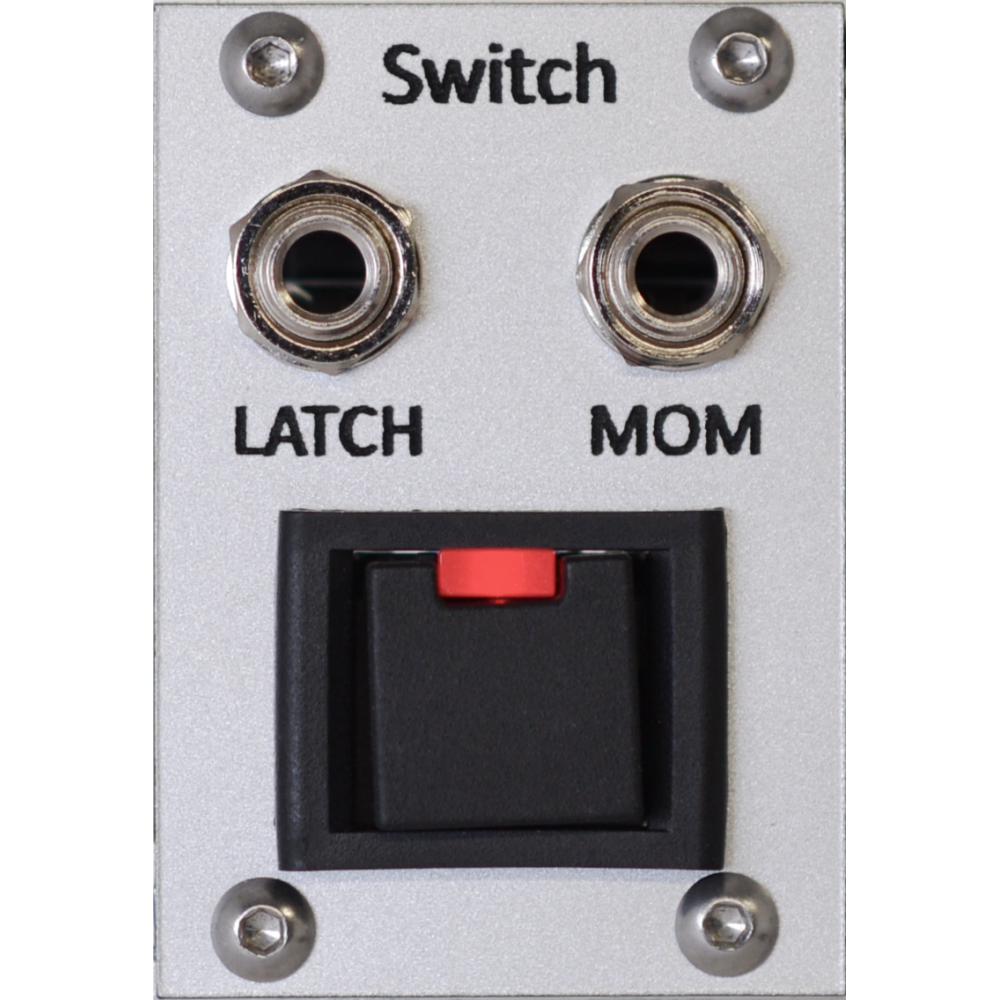

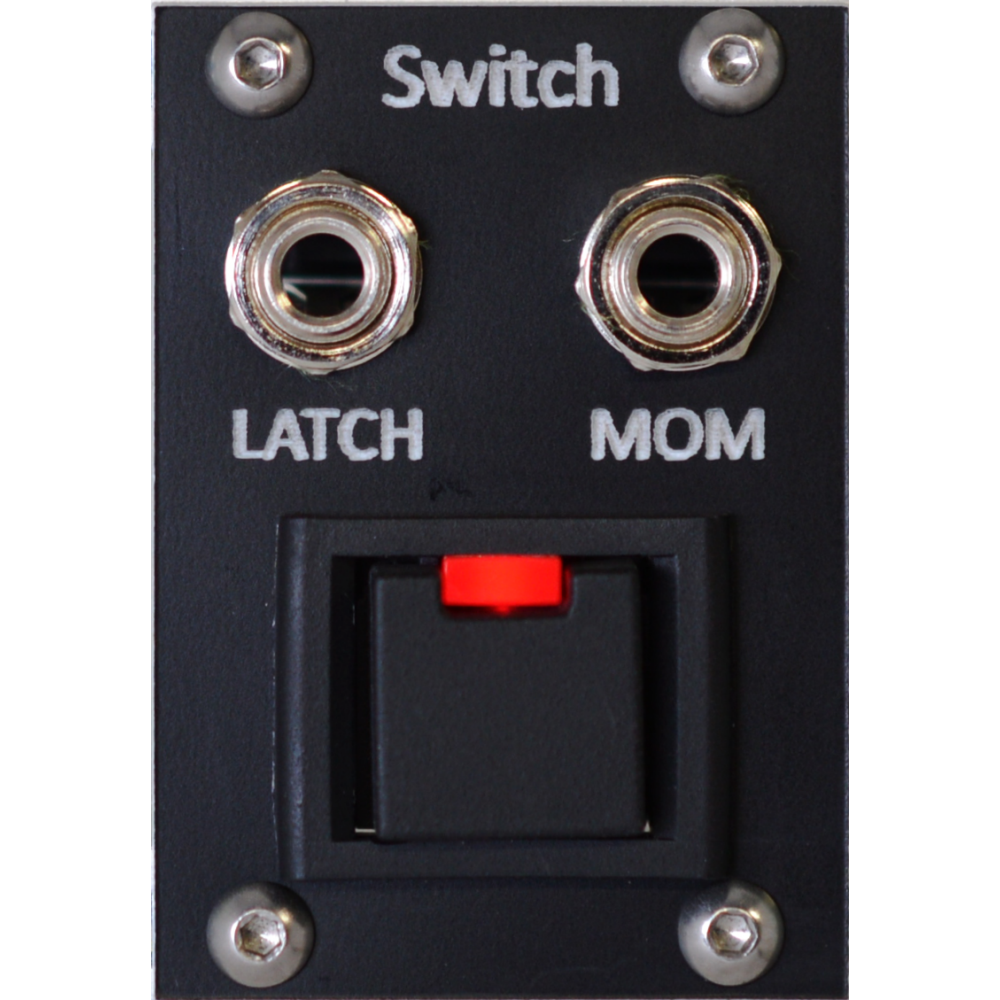

The Switch Tile uses a high quality C&K push switch to provide momentary “MOM” and latched “LATCH” 0-5V CV outputs. The “LATCH” output alternates between 0V and 5V on each button press and the current state is indicated on the LED. The “MOM” jack outputs 0V when the switch is not pressed and 5V when the switch is pressed. Both outputs are debounced for glitch free operation.
