Sum-Vert
Specifications:
Width: 6 HP / 1 Tile Unit
Depth: 14mm (0.55″)
Power cable: Tile Tail (3-pin)
Power +12V: 5mA
Power -12V: 5mA
1U Tile Specs
Description

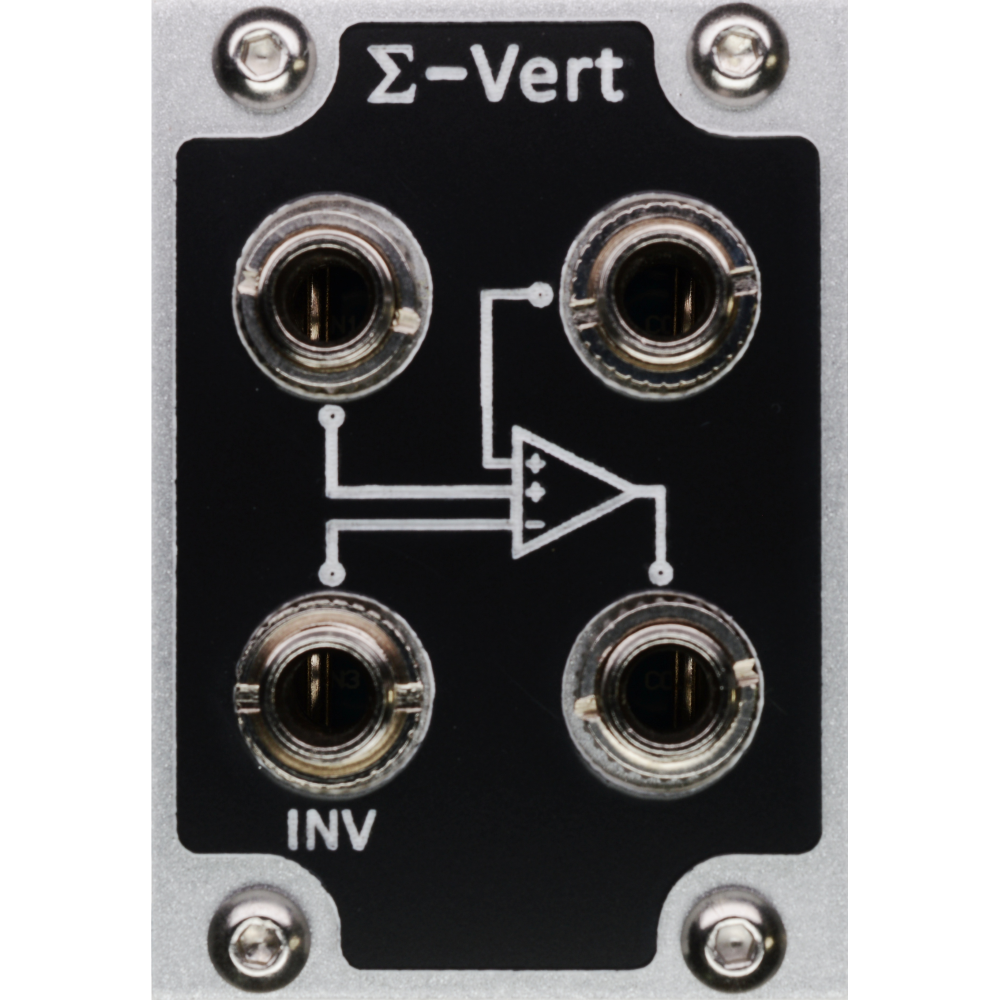

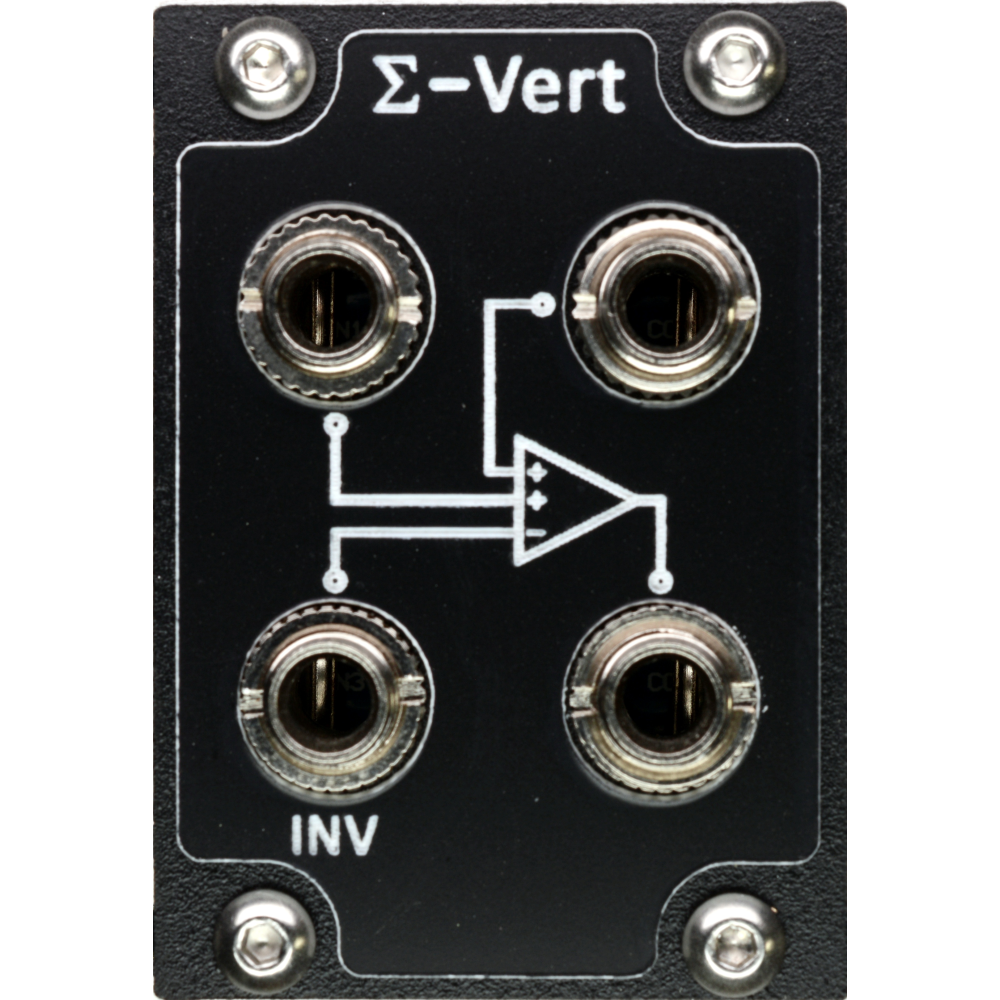

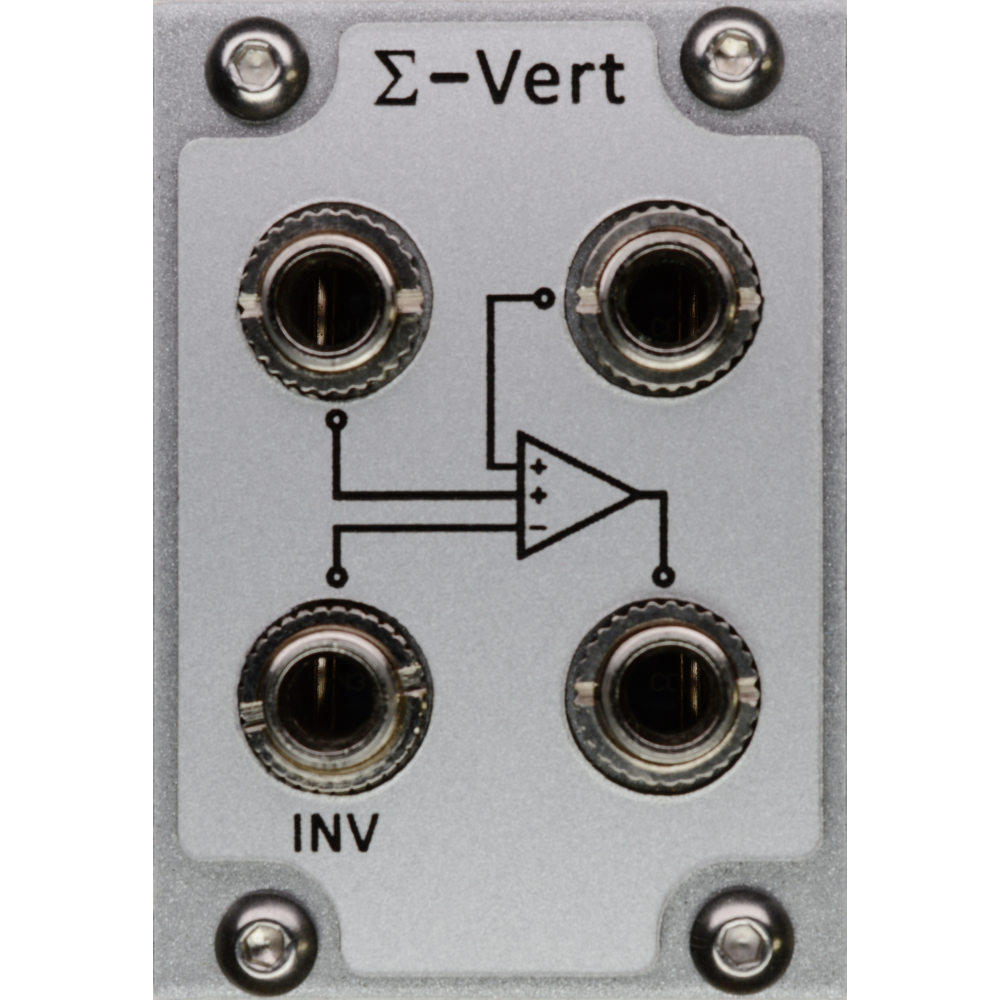

The Sum-Vert Tile is a DC coupled mixer for audio or control signals with one inverted input. It can be used as a phase or voltage inverter by only patching the inverting input (bottom left jack).
