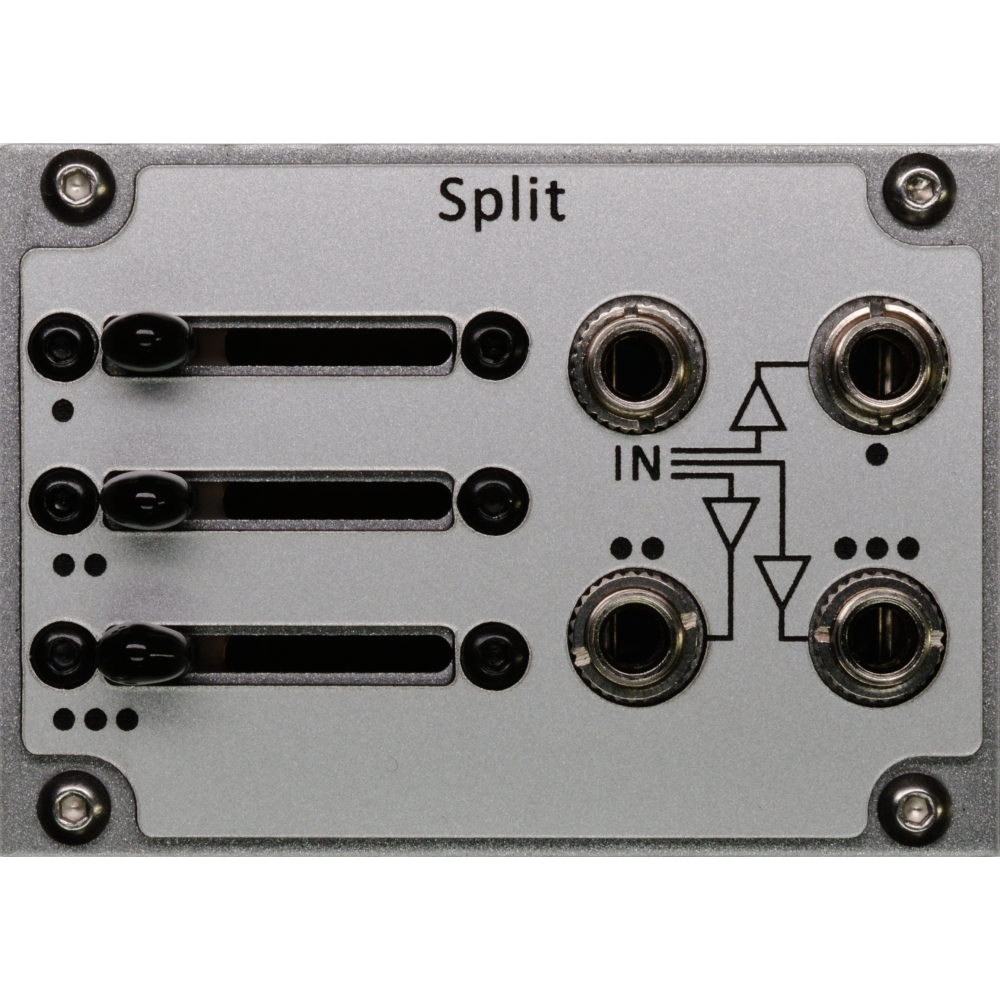

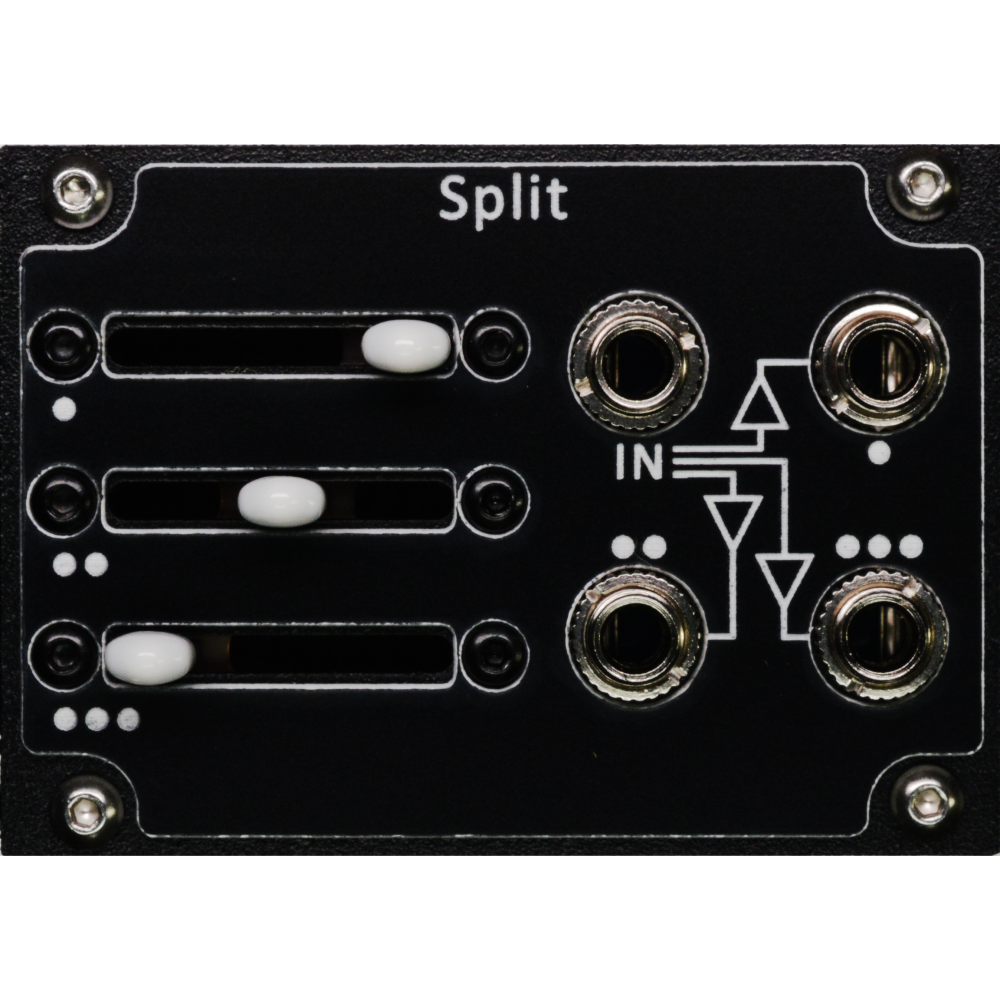

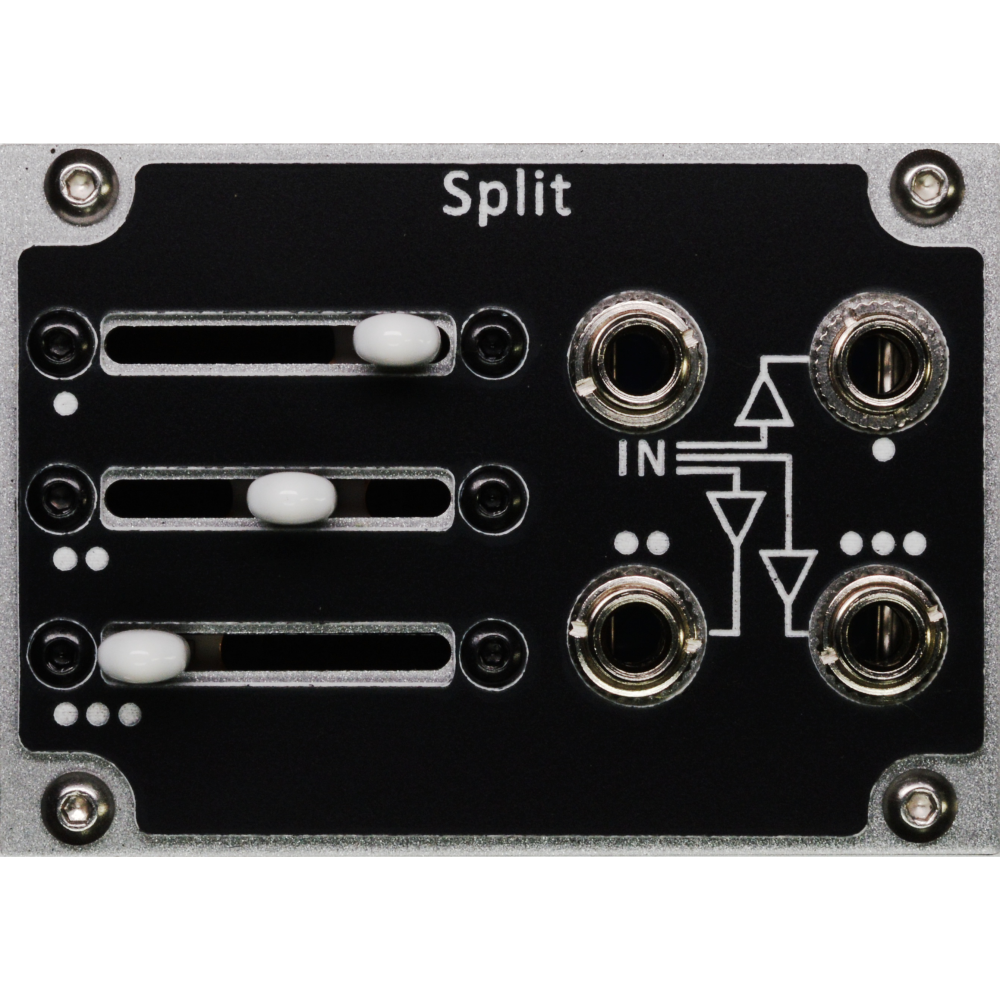

1-to-3 Signal Splitter
Specifications:
Width: 12 HP / 2 Tile Units
Depth: 15mm (0.59″)
Power cable: Tile Tail (3-pin)
Power +12V: 10mA
Power -12V: 10mA
1U Tile Specs
Description
The Split Tile is an adjustable 1-to-3 signal splitter which is useful for buffering and attenuating both audio and control voltage signals. When the input jack is not patched the Split operates as a 3-channel control voltage source providing a 0 to 5V CV signal on each output. The Split is DC coupled and uses linear taper potentiometers.
