Sample and Hold
Specifications:
Width: 6 HP / 1 Tile Unit
Depth: 20mm (0.8″)
Power cable: Tile Tail (3-pin)
Power +12V: 5mA
Power -12V: 5mA
1U Tile Specs
Description
The S&H Tile can act either as either a sample-and-hold or track-and-hold depending on which input the clock is fed into.

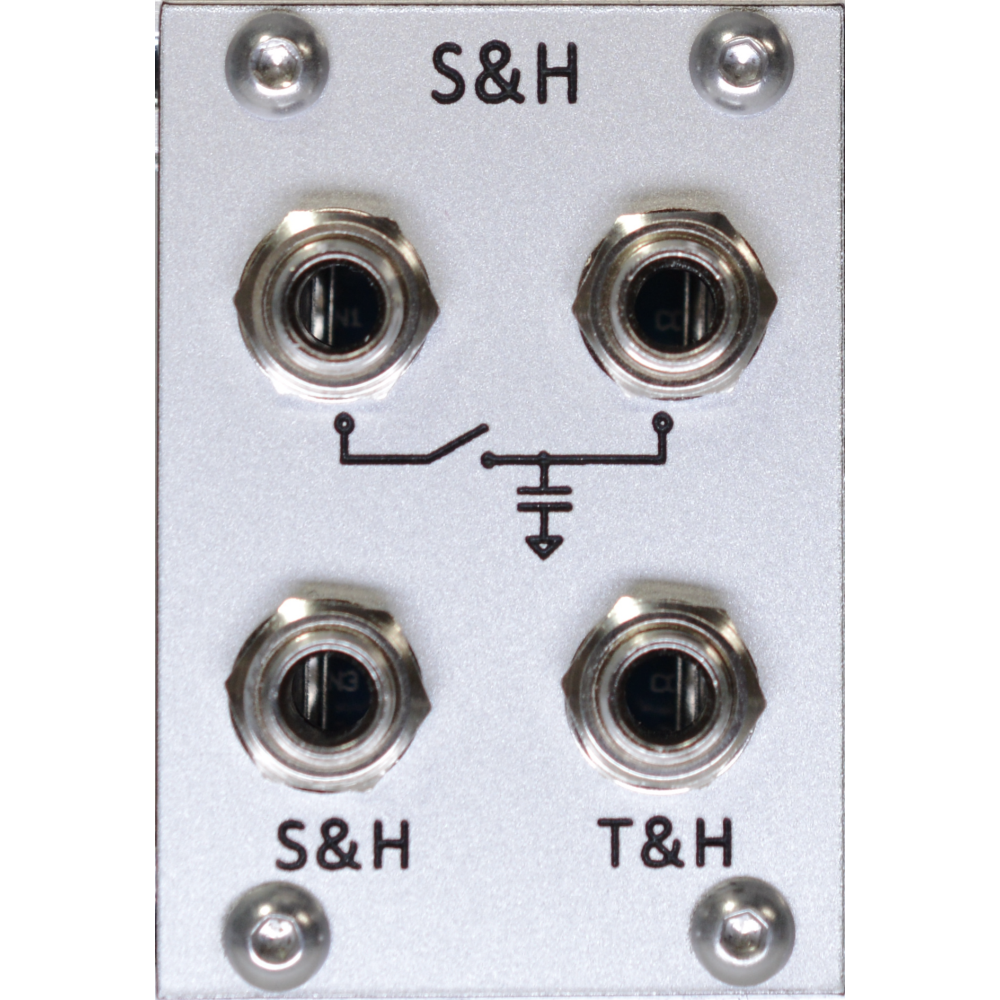

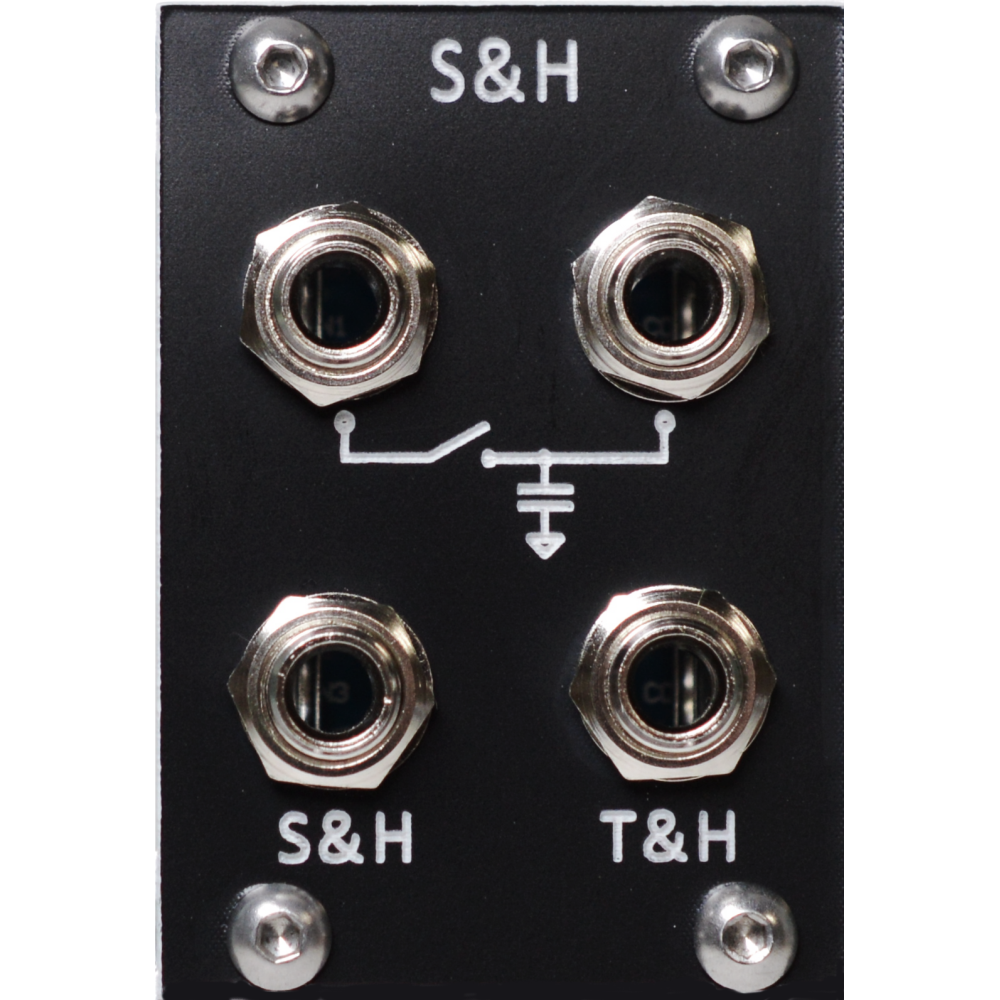

The signal “to be sampled” should be put into the upper left jack, and the output is taken from the upper right. To run the Tile as a sample-and-hold, run a clock into the bottom left S&H input. To use the Tile as a track-and-hold, run a clock into the bottom right T&H input.
