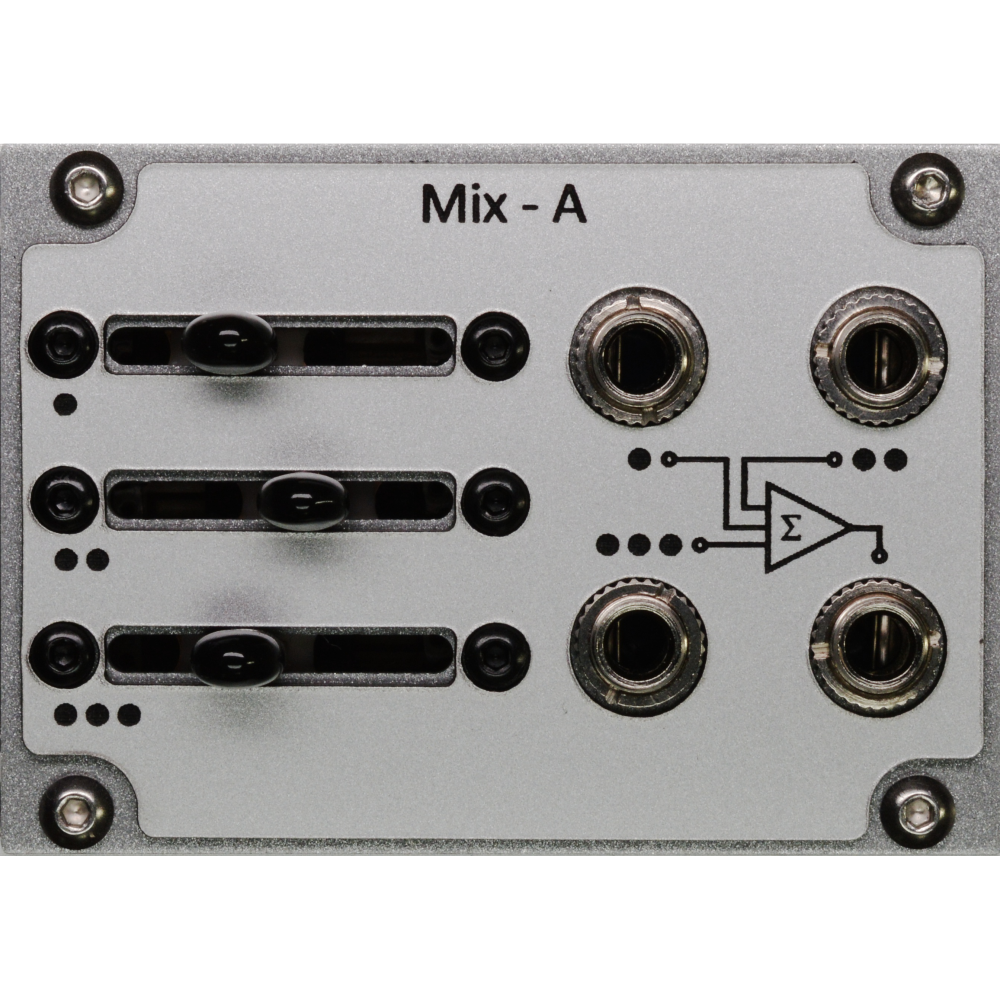

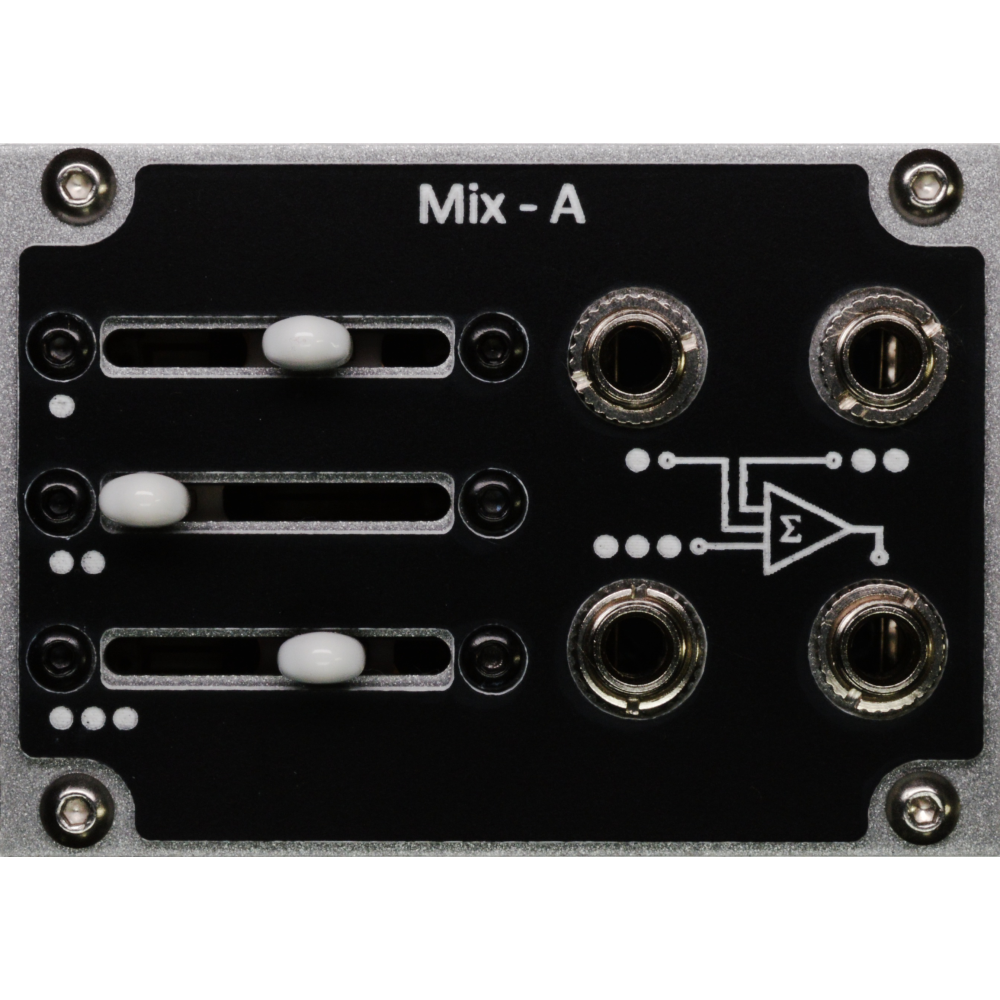

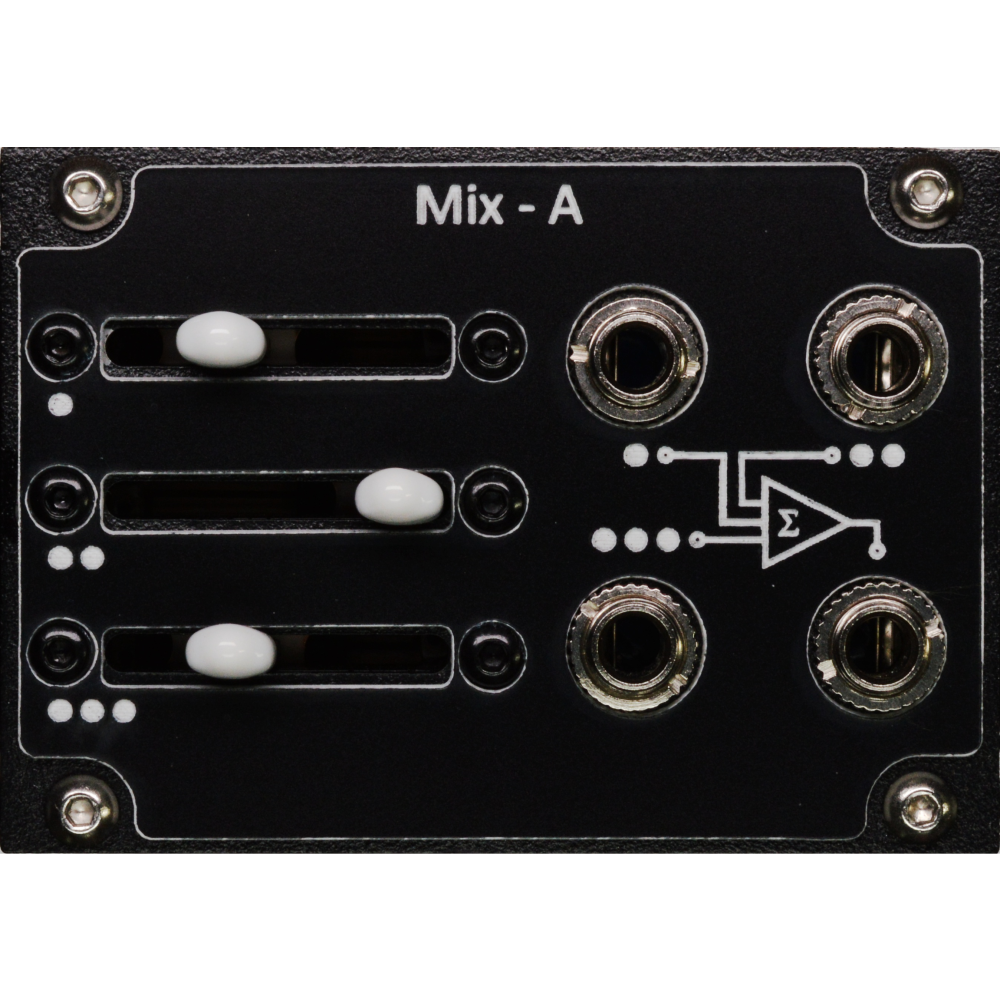

Mix-A Tile
Specifications:
Width: 12 HP / 2 Tile Units
Depth: 15mm (0.59″)
Power cable: Tile Tail (3-pin)
Power +12V: 10mA
Power -12V: 10mA
1U Tile Specs
Description
Three channel AC coupled mixer for audio. The Mix-A tile uses log taper slide potentiometers and is AC coupled so it removes any DC offset when mixing audio. It features low noise NE5532 op-amps and film capacitors for low distortion.
