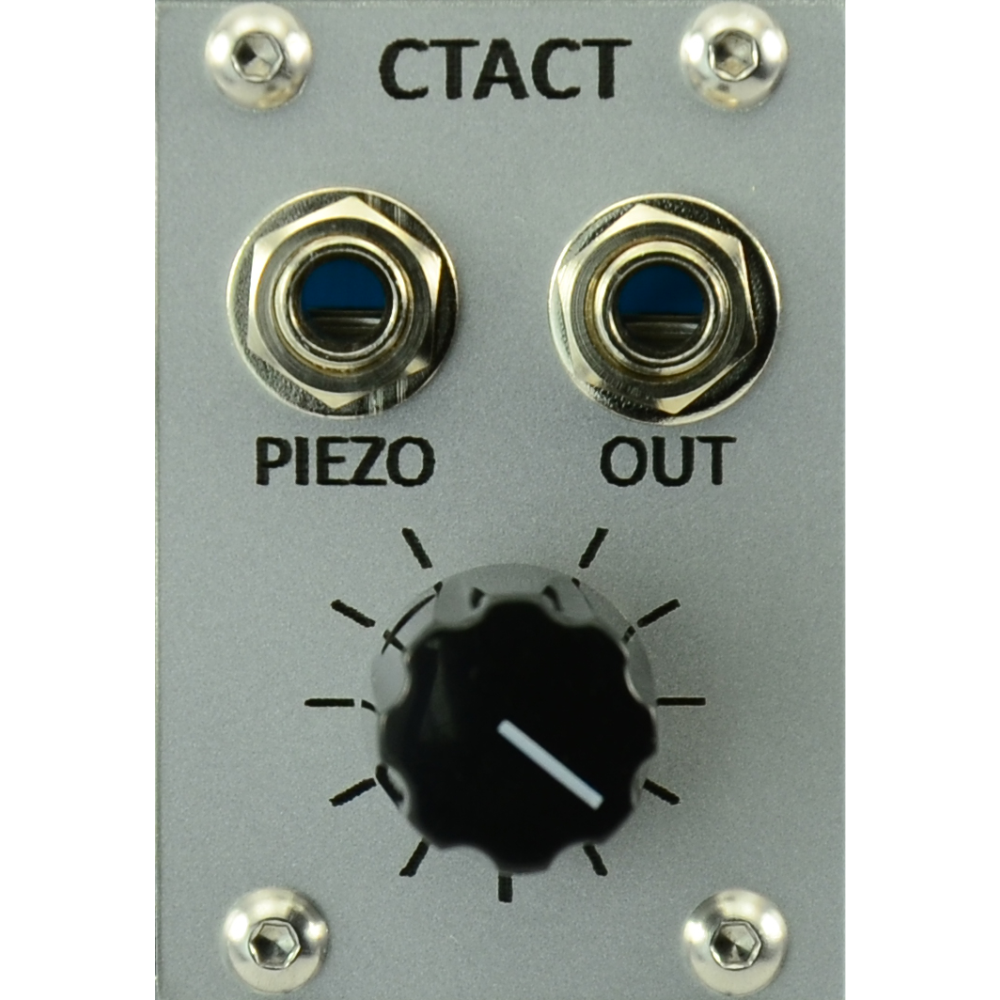

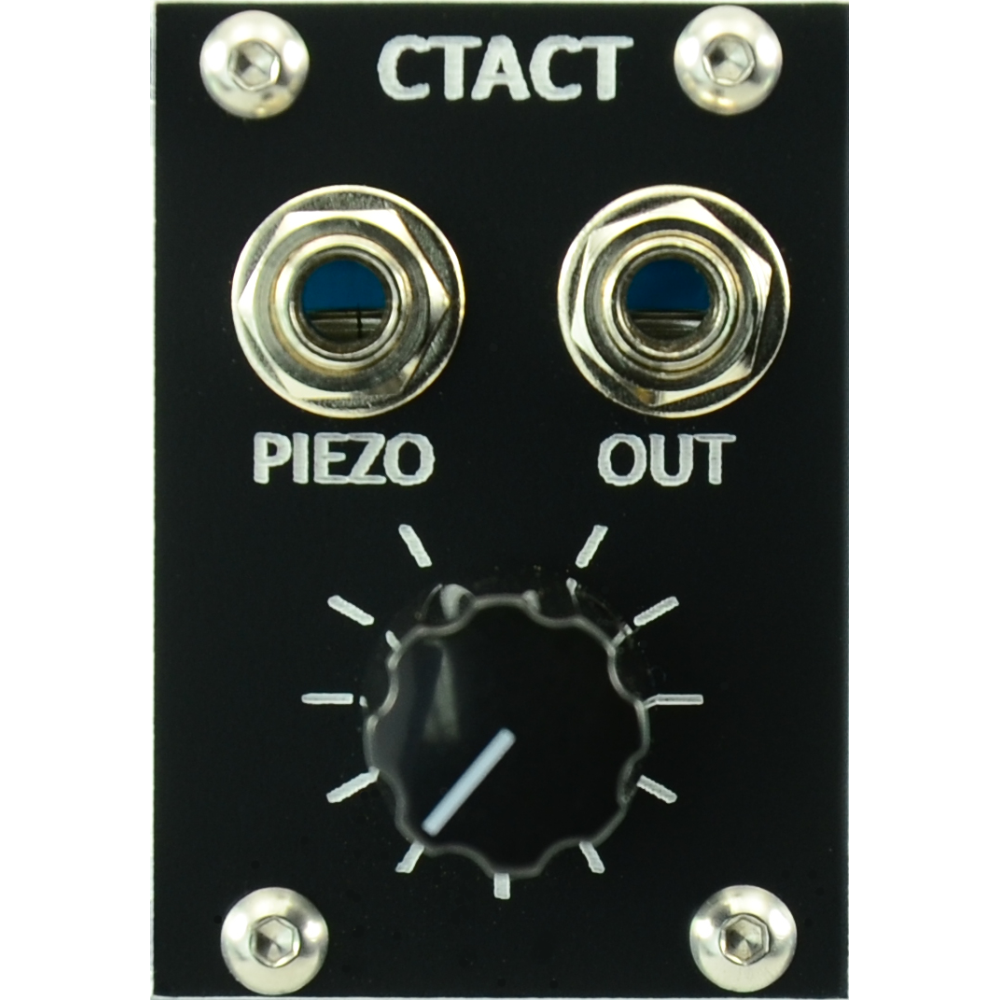

Contact mic/piezo pre-amplifier
Specifications:
Width: 6 HP / 1 Tile Unit
Depth: 20mm (0.79″)
Power cable: Tile Tail (3-pin)
Power +12V: 5mA
Power -12V: 5mA
1U Tile Specs
Description
CTACT is a pre-amplifier for piezo-based contact microphones. CTACT contains diode protection from large input signals. Has a high input impedance of around 4.7Meg, and has a large amount of available gain AC coupled over 2 stages. The tile comes with 5 Piezo discs for you to start experimenting.
