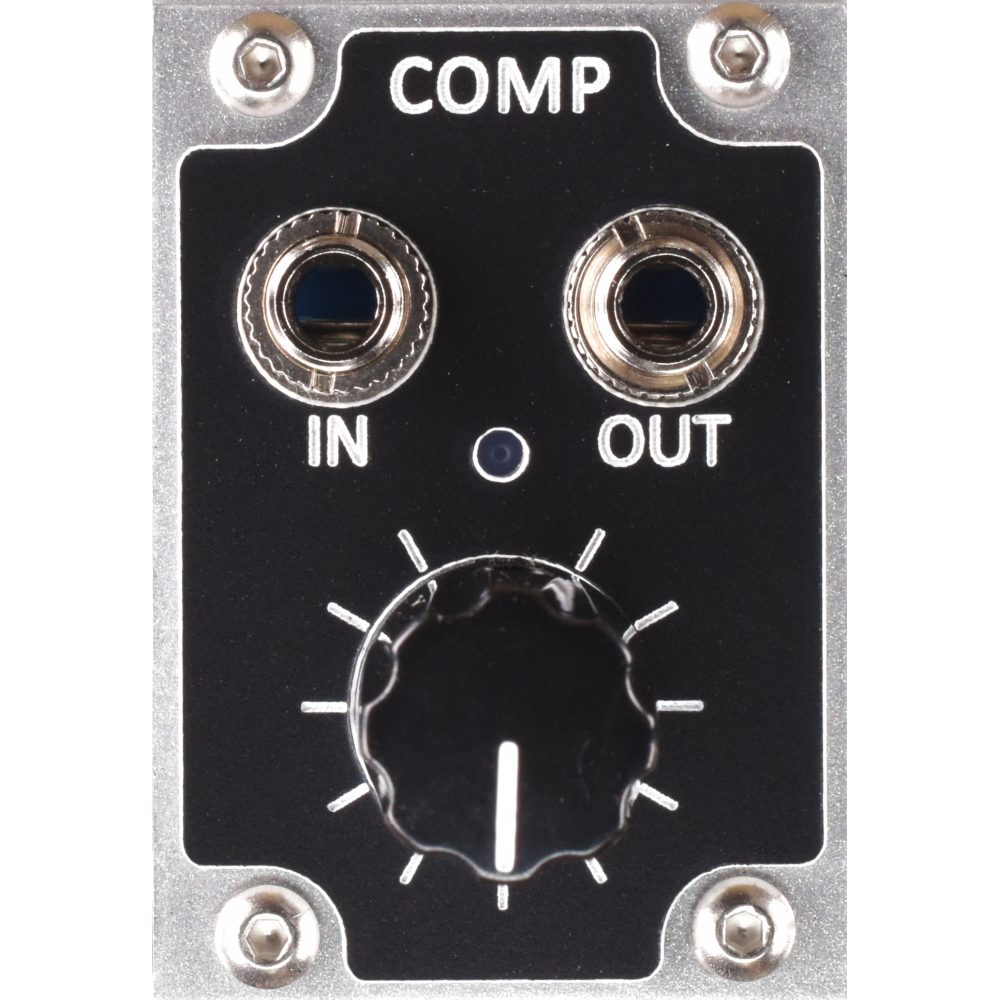

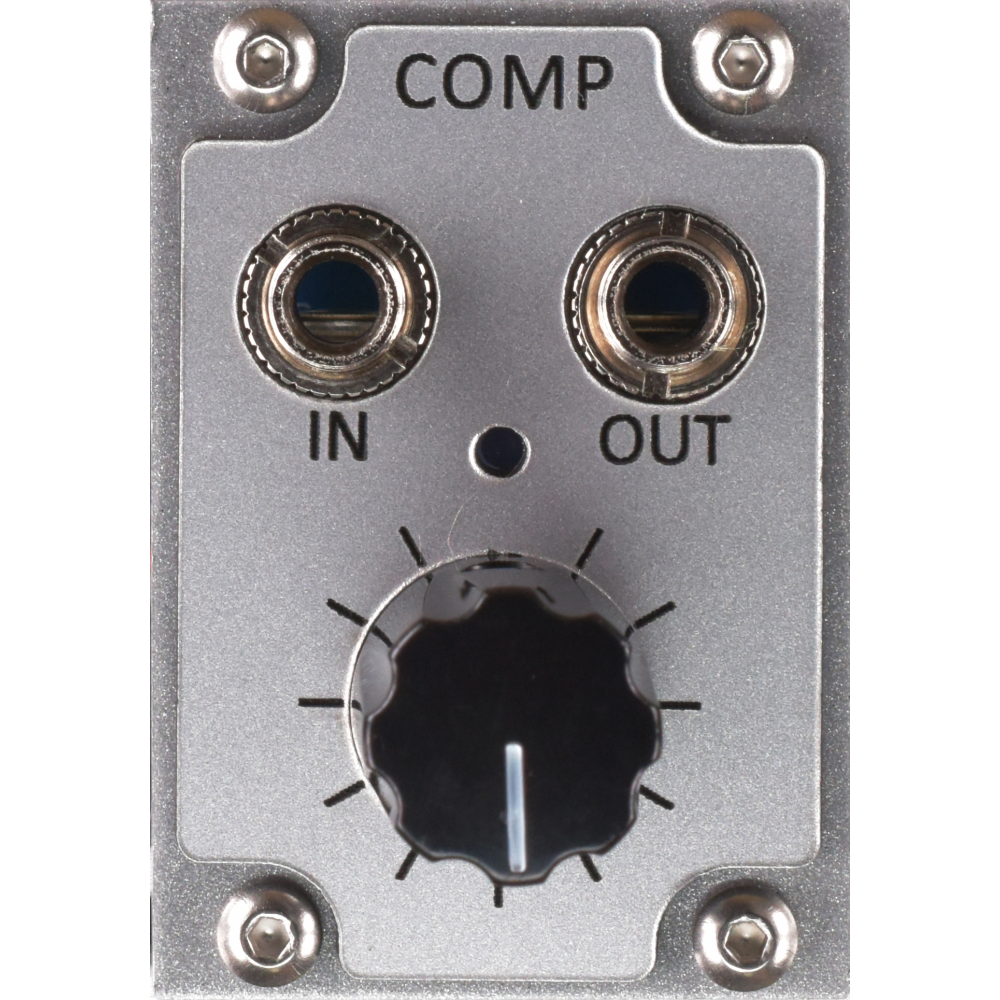

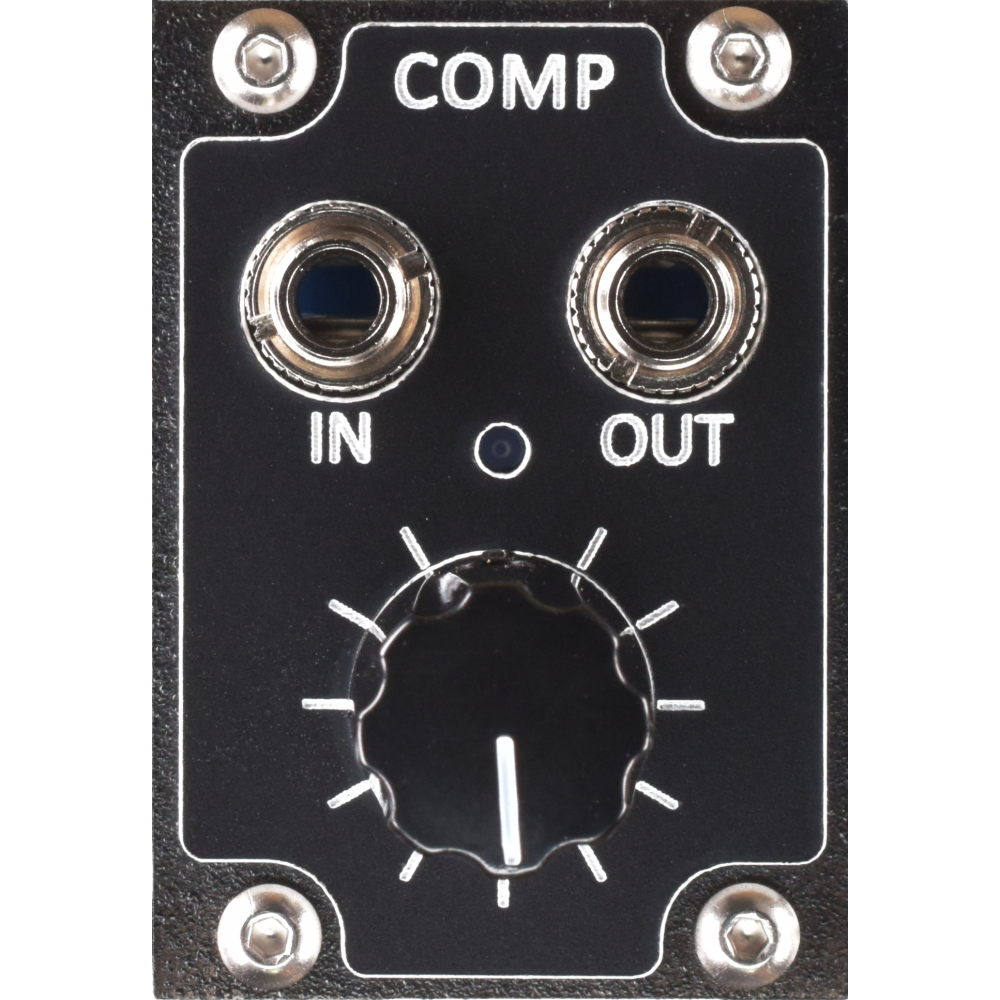

Analog Comparator Tile
Specifications
Width: 6 HP / 1 Tile Unit
Depth: 15mm (0.59″)
Power cable: Tile Tail (3-pin)
Power +12V: 10mA
Power -12V: 10mA
1U Tile Specs
Description
The Compare tile puts out a logic high signal when the input voltage exceeds the threshold set by the knob.
