Passive Audio Taper Attenuation
Specifications:
Width: 6 HP / 1 Tile Unit
Depth: 15mm (0.59″)
Power cable: None Passive
Power +12V: 0mA
Power -12V: 0mA
1U Tile Specs
Description

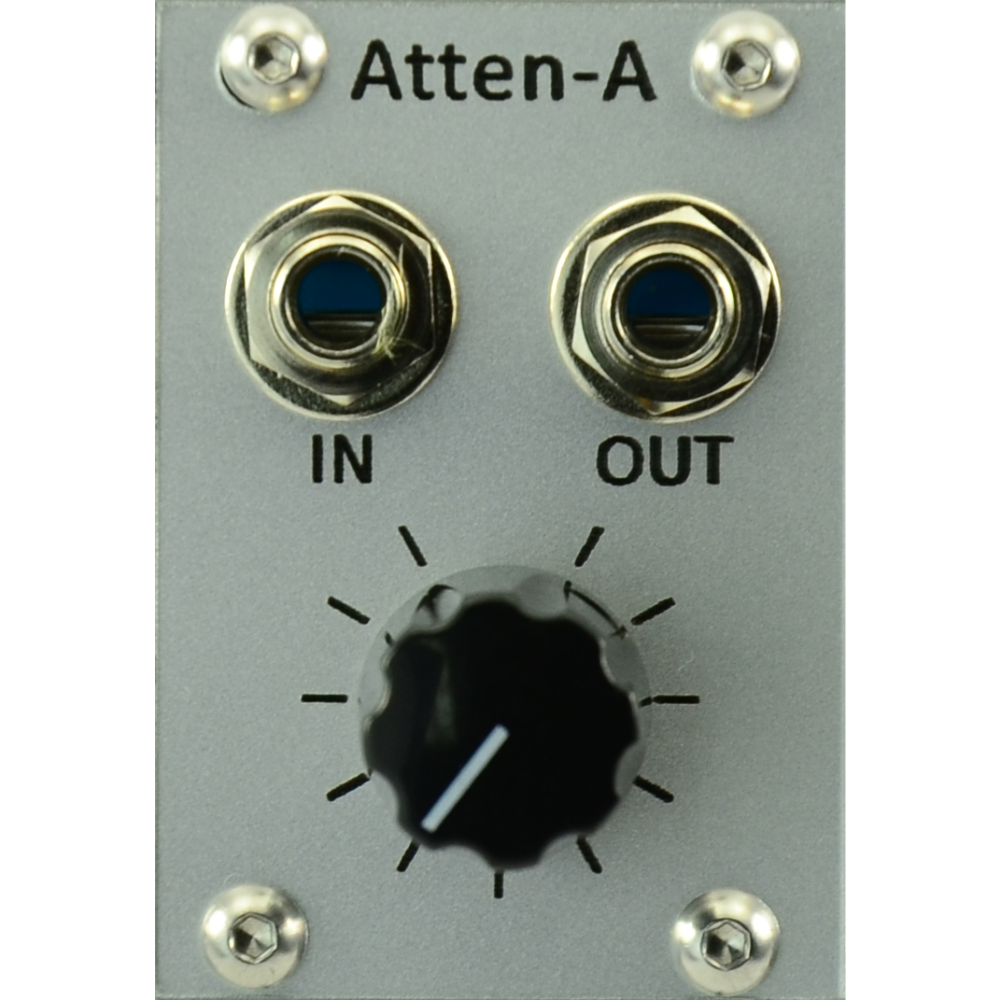

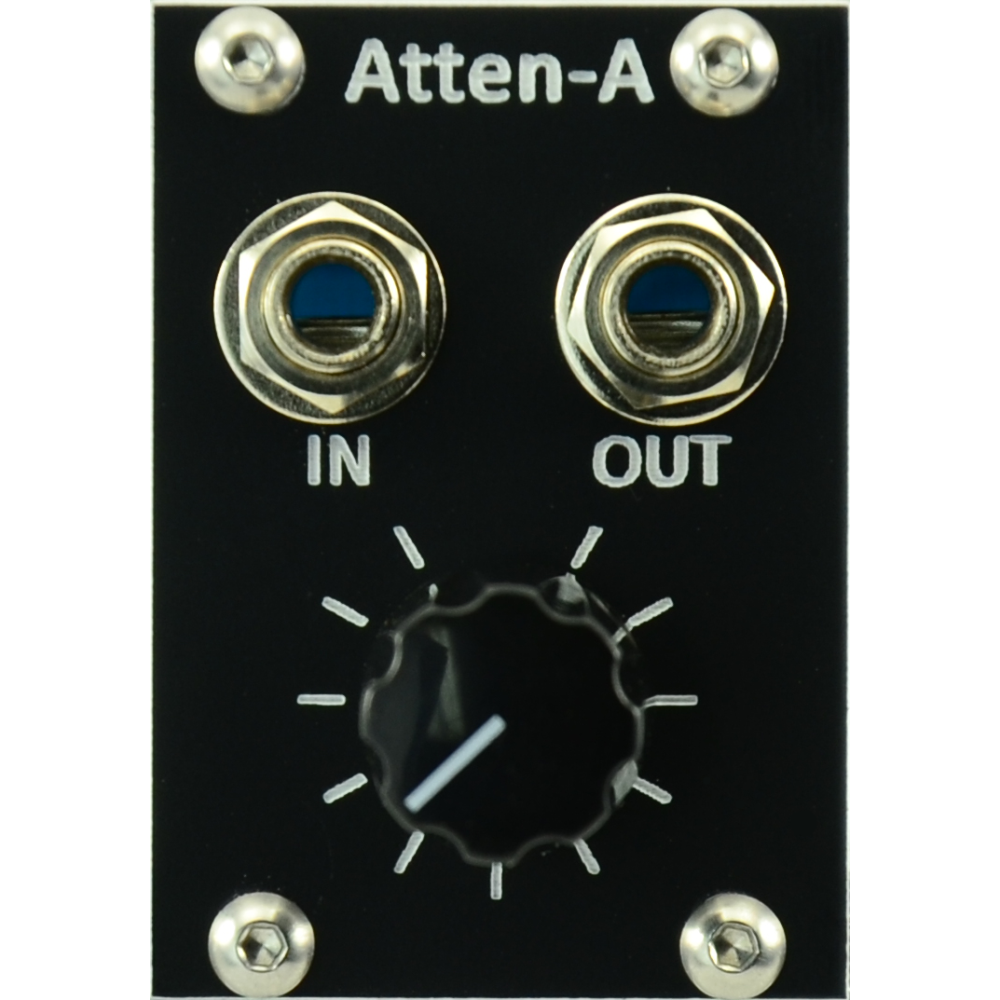

This is a passive attenuator using an Alps 50k log taper potentiometer. The Atten-A tile can be used to scale audio or control signals, however it is most useful on audio signals where it is often desirable to have the potentiometer rotation follow a decibel scale.
