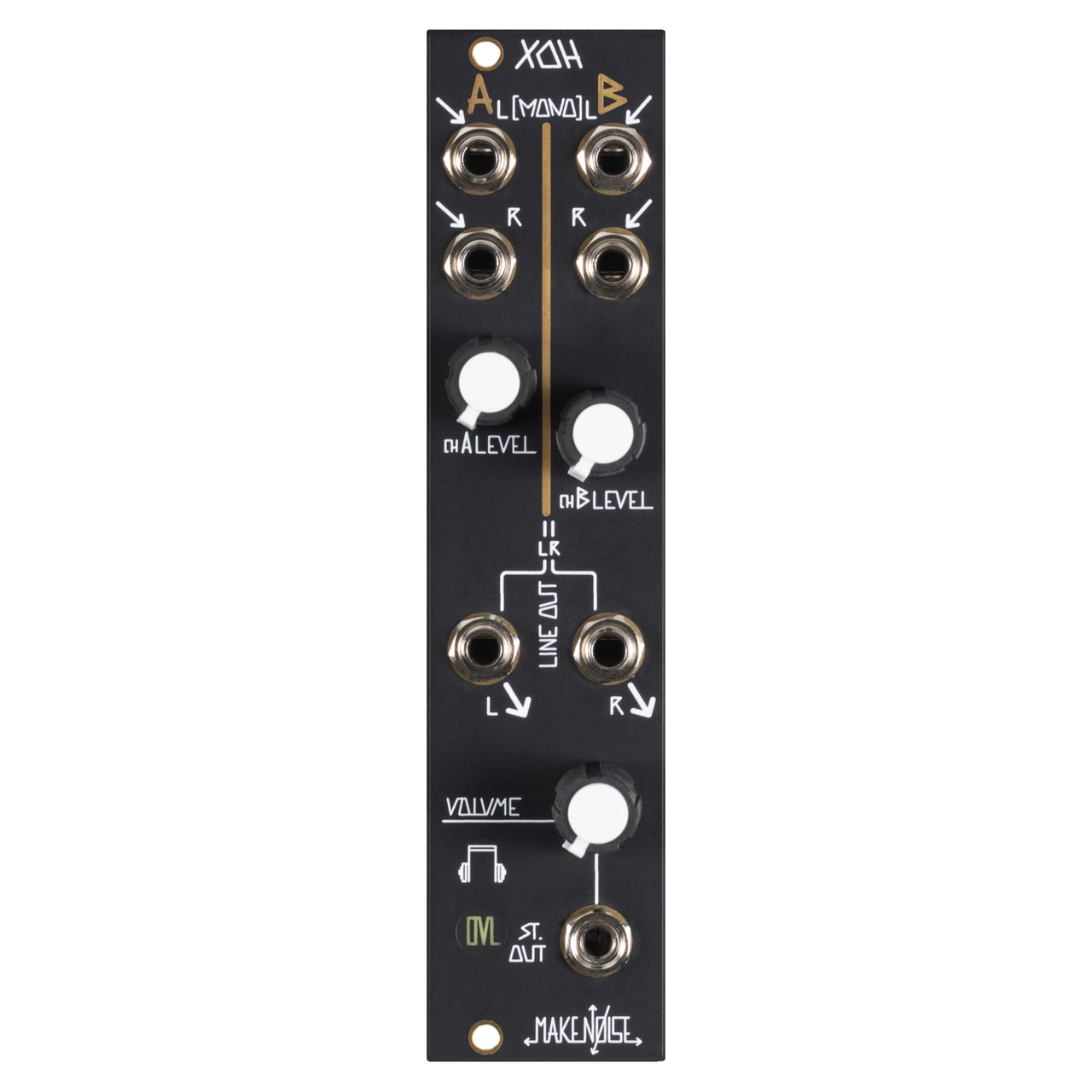

Make Noise XOH Stereo/headphone output module Pre-Order

The XOH (miX Out Headphone) music synthesizer module is a stereo mixer, headphone amplifier and output interfacing module for your modular synthesizer. It consists of two stereo input channels with independent level controls, and two stereo outputs: one pair of independent line level left and right outputs at unity gain; and one TRS headphone or line level output with dedicated level control.

features

• Works well with stereo modules: Erbe-Verb, Morphagene, QPAS, X-PAN, Mimeophon
• Two mono/stereo input channels, ChA & ChB
• Independent level controls for ChA & Ch B
• Two stereo outputs containing A/B mix
• Independent unity gain L/R Line Level outputs
• TRS Headphone and Line Level output with level control (same line drive circuit used in the CV Bus Case)
• Adjust Modular Level signals down to Line Level with soft Limiting to protect your ears and line level gear

specifications

• Width: 6hp
• Max Depth: 24mm
• Power:
  40mA@ +12V
  40mA @ -12V
• manual:
• xoh-manual.pdf
