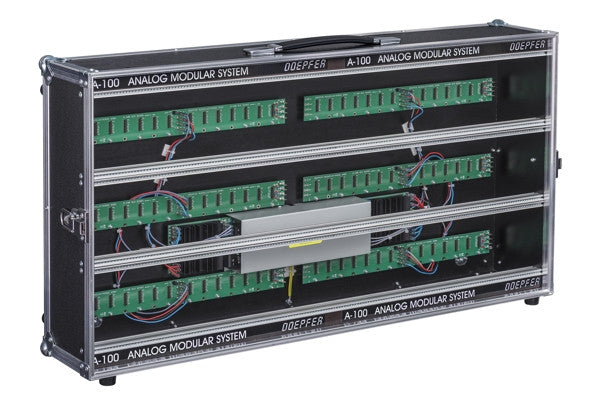

Doepfer A-100PMS9 Monster Cases 9U/504HP(3x168HP)

A-100PMS9

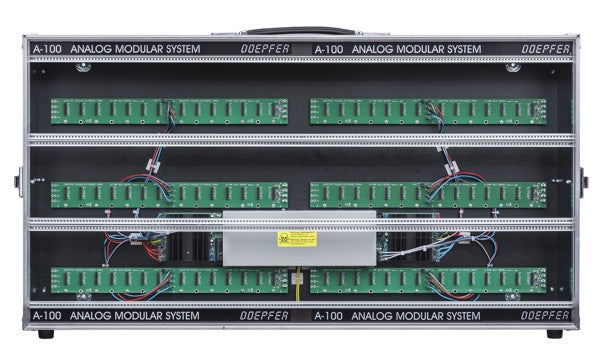

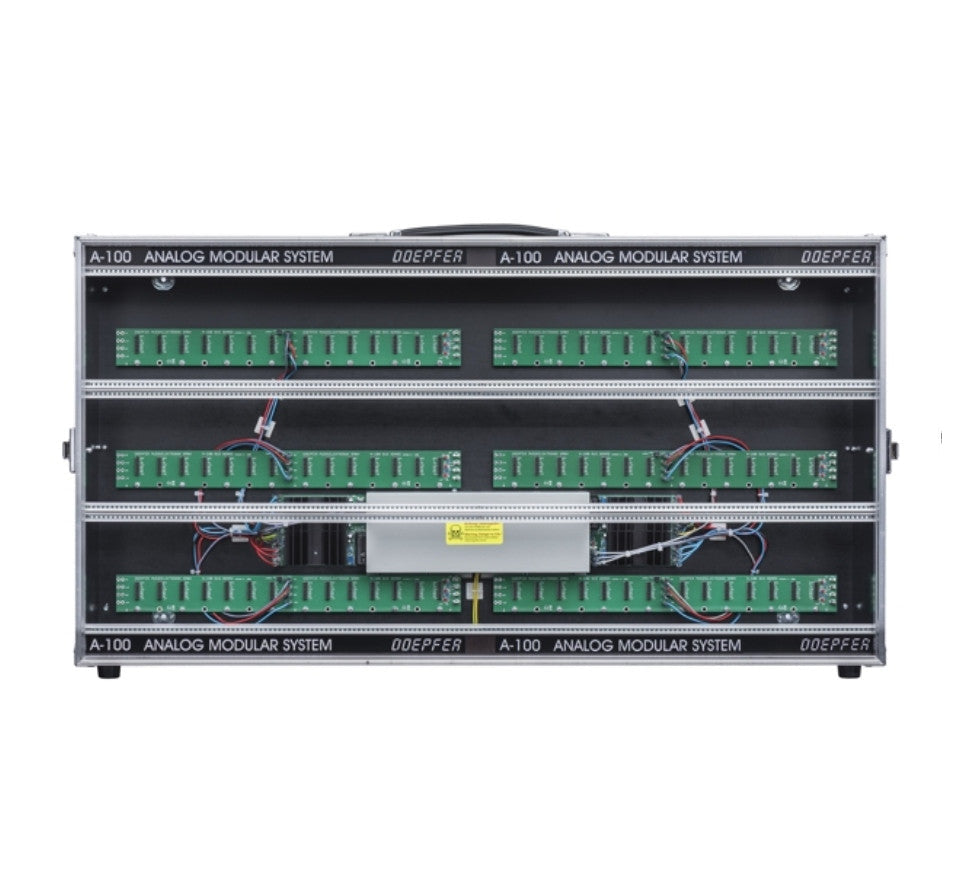

Single version of the 9U/168HP A-100 monster case with 9U/168HP (A-100PMS9):

outside dimensions (with front cover, closed state): ~ 90 (length) x 48 (height) x 23 (depth) cm
weight of the case (incl. bus boards, power supplies, with front cover, without modules): ~ 14 kg
outside dimensions of the single case (without front cover):  ~ 90 (length) x 48 (height) x 18 (depth) cm
available 19" width and height: 9 U x 168 HP

Quantity of bus boards: 6

Maximum Output Current:
with two built-in A-100PSU2 (until about end of 2015): +12V/2400mA, -12V/2400mA
with two built-in A-100PSU3 (since about early 2016): +12V/4000 mA, -12V/2400mA, +5V/8000mA

Assignment of the power supplies to the bus boards:
A-100PSU #1: bus board triple left
A-100PSU #2: bus board triple right
Each power supply A-100PSU3 delivers max. +12V/2000 mA, -12V/1200mA, +5V/4000mA
Each power supply A-100PSU2 delivers max. +12V/1200 mA, -12V/1200mA

inside usable depth for A-100 modules: approx. 70 mm in the power supply area (bottom right), resp. approx. 100 mm in the remaining area (measured from inner side of the front panel until end of the pc board of the module)
position of the mains inlet: center of the rear panel

User's manual: A100_short_form_manual_2020.pdf
