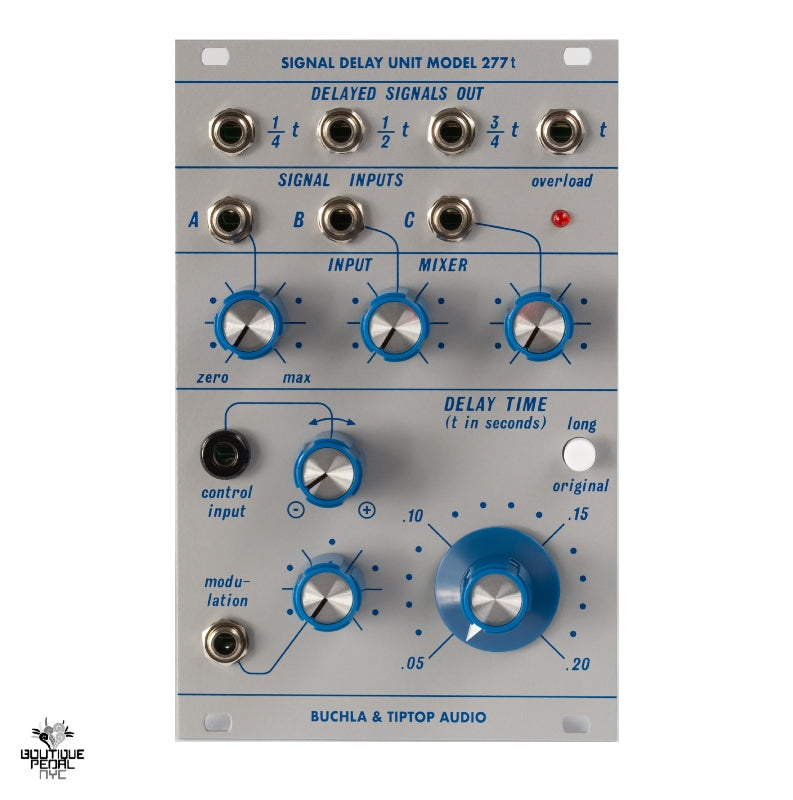

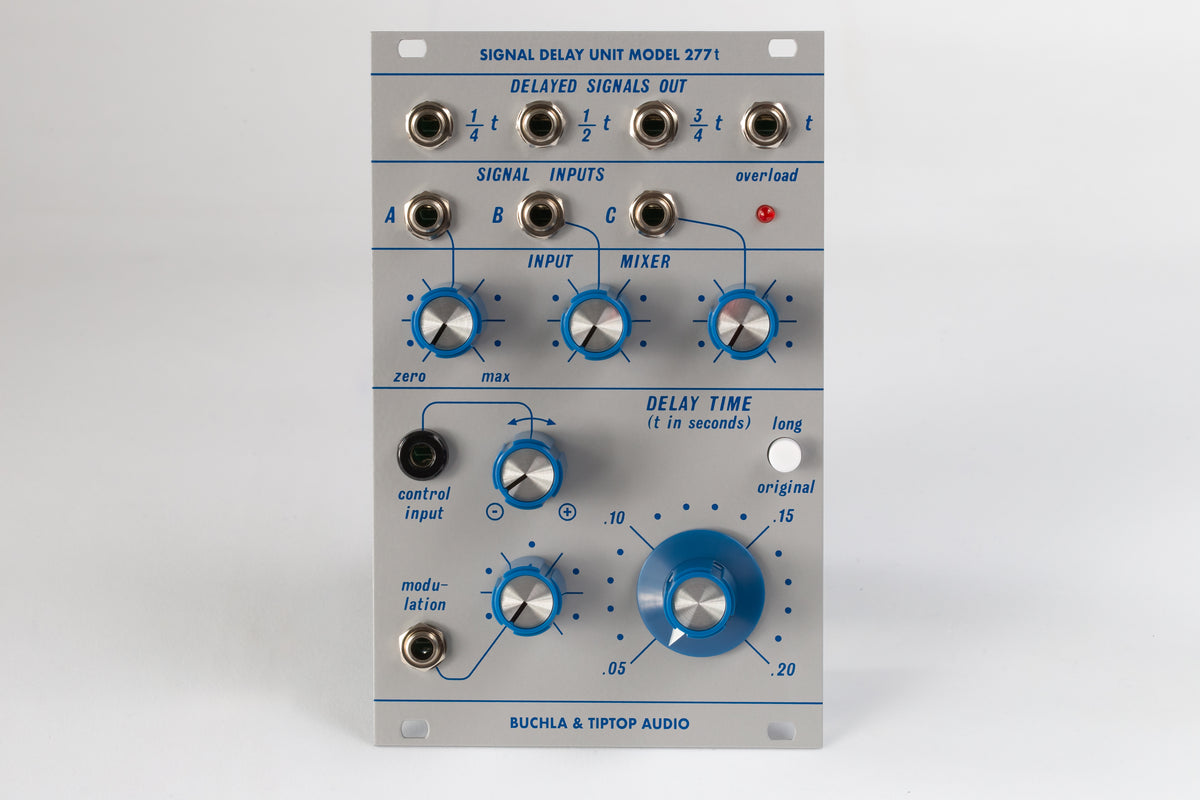

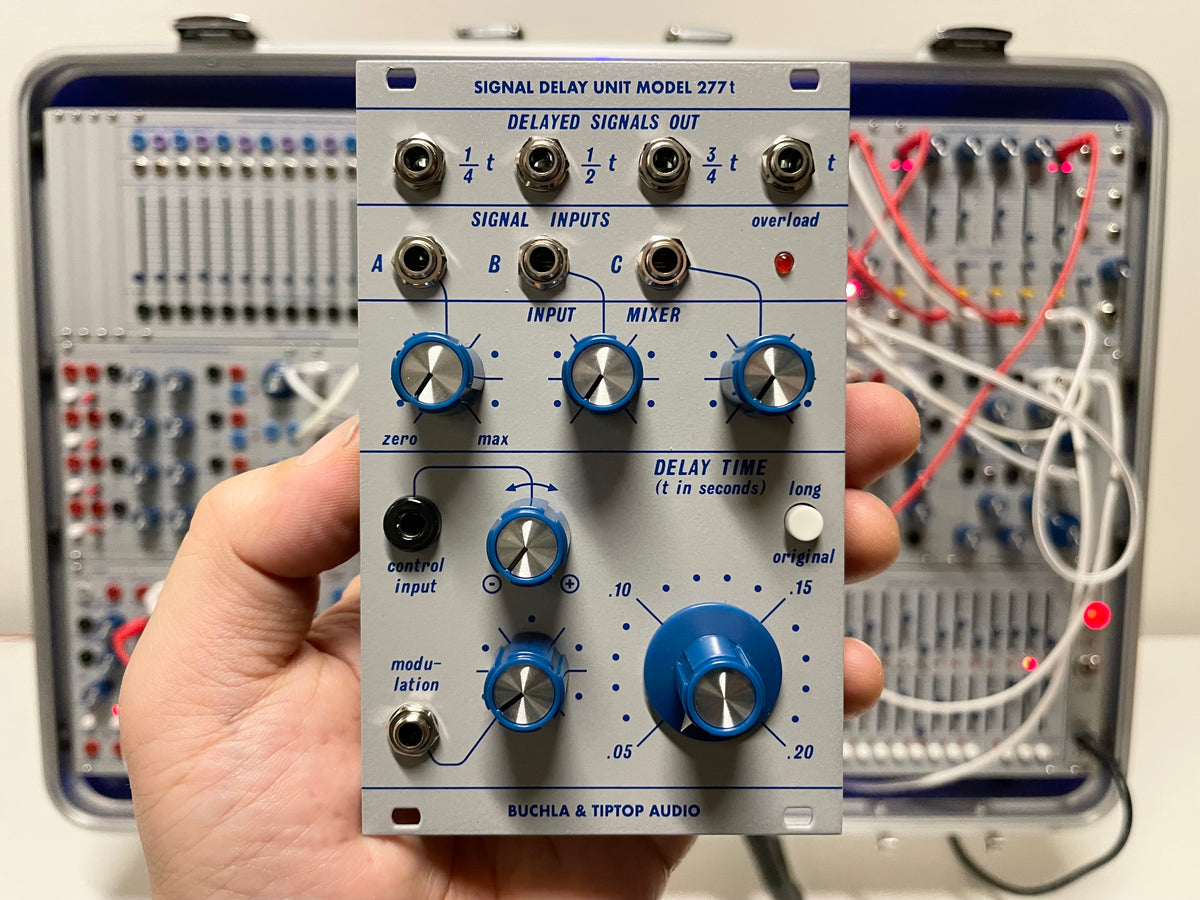

Buchla & Tiptop Audio SIGNAL DELAY UNIT MODEL 277t Pre-order

Ships on 6th of October 🚀

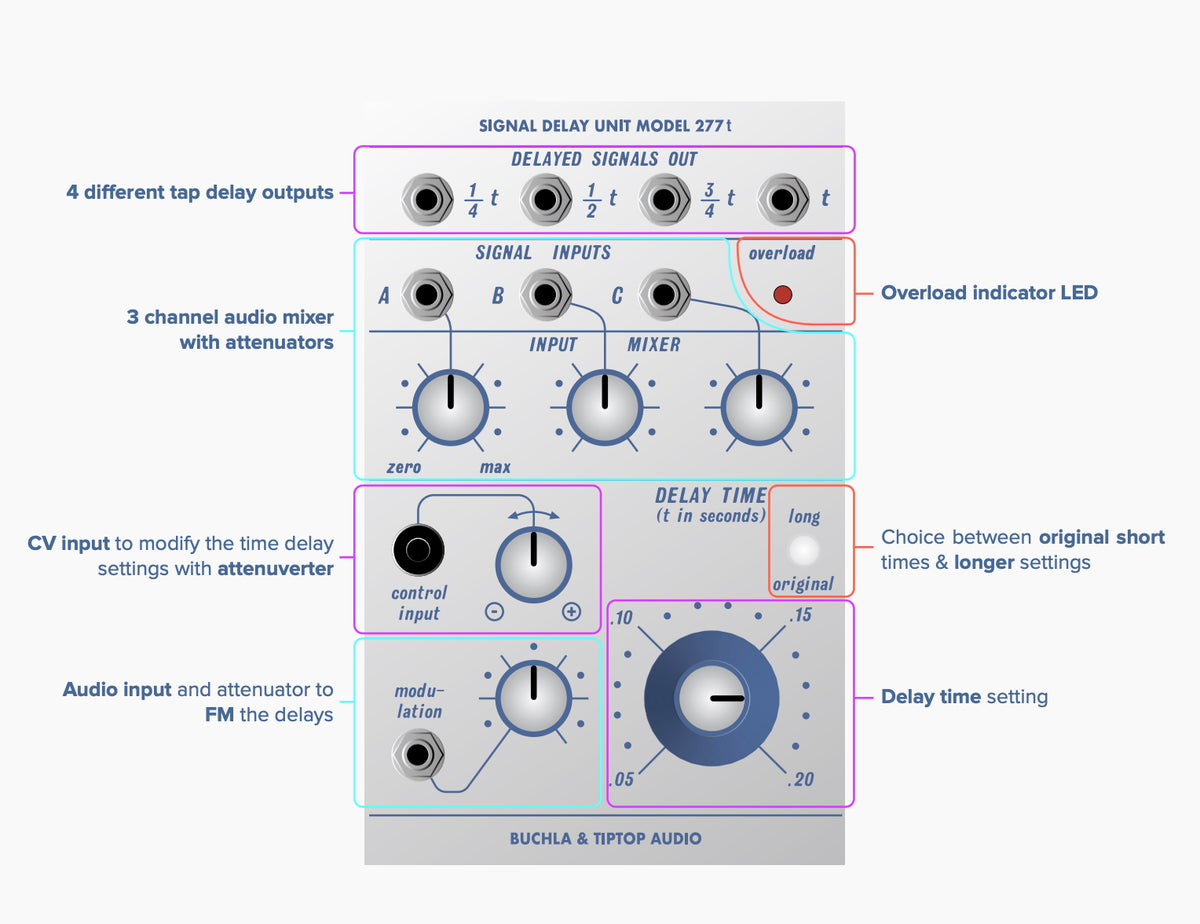

The 277 Signal Delay Unit was invented in 1972 and was one of the first digital delay lines ever made. A delay line passes audio through a series of clocked shift registers, with the clock speed determining the delay time. On its own, this simply delays the audio, but routing signals through different paths opens up further possibilities. For example, feeding the output back into the input creates repeating echoes, while placing additional processors in the feedback path allows for more complex eects. Modulating the clock speed can also create pitch-shifting effects. As such, the 277t should be considered, among its other functions, a centerpiece for building eects by patching it with other modules, rather than a modern delay effect module, which typically features a preconfigured signal path.

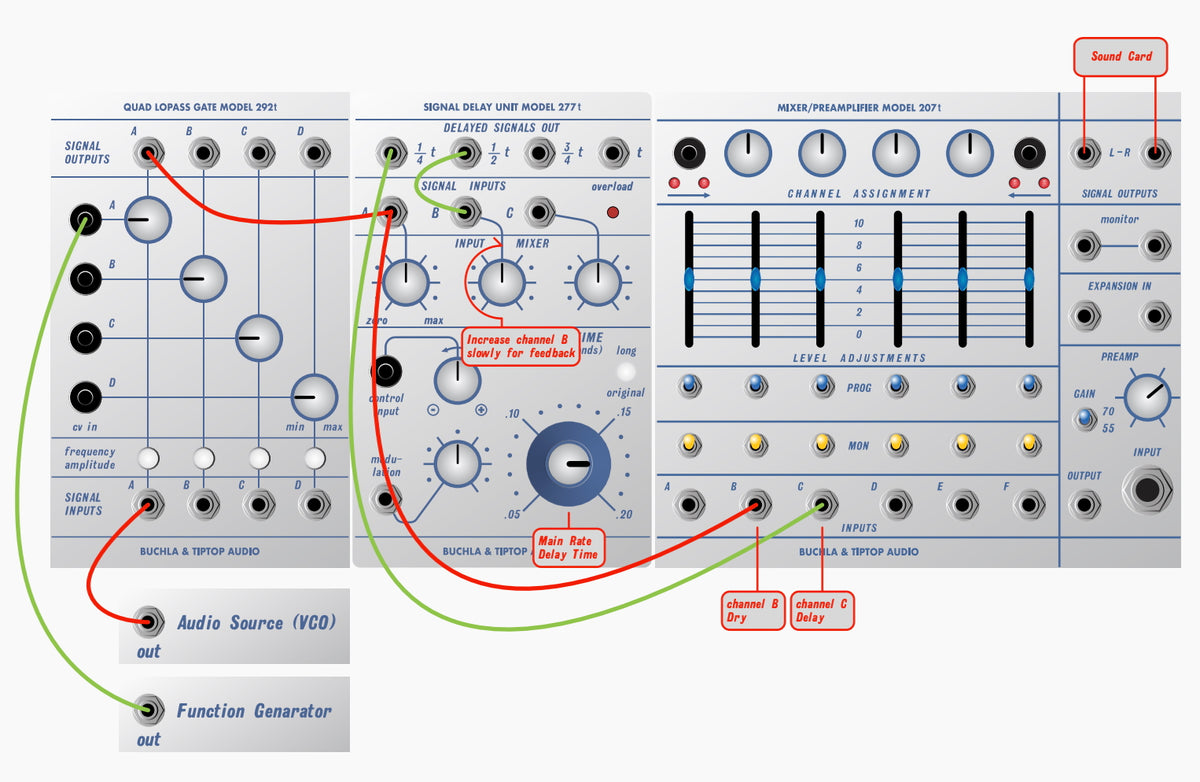

277t Basic Delay with Feedback

1. Main audio signal to one channel of an external mixer
2. Duplicate that signal and send it to the input of channel A of the 277t

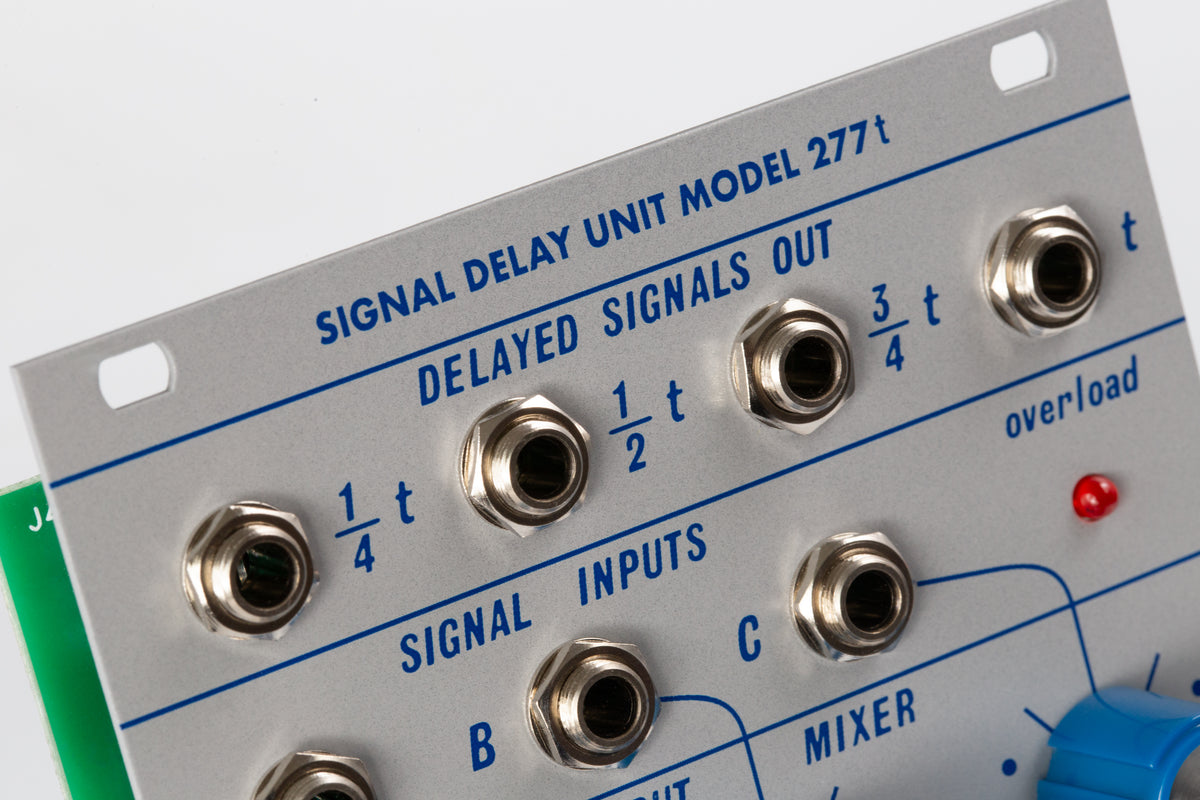

3. Take a tap delay output (1/4, 1/2, 3/4 or Full) to another channel of the external mixer.

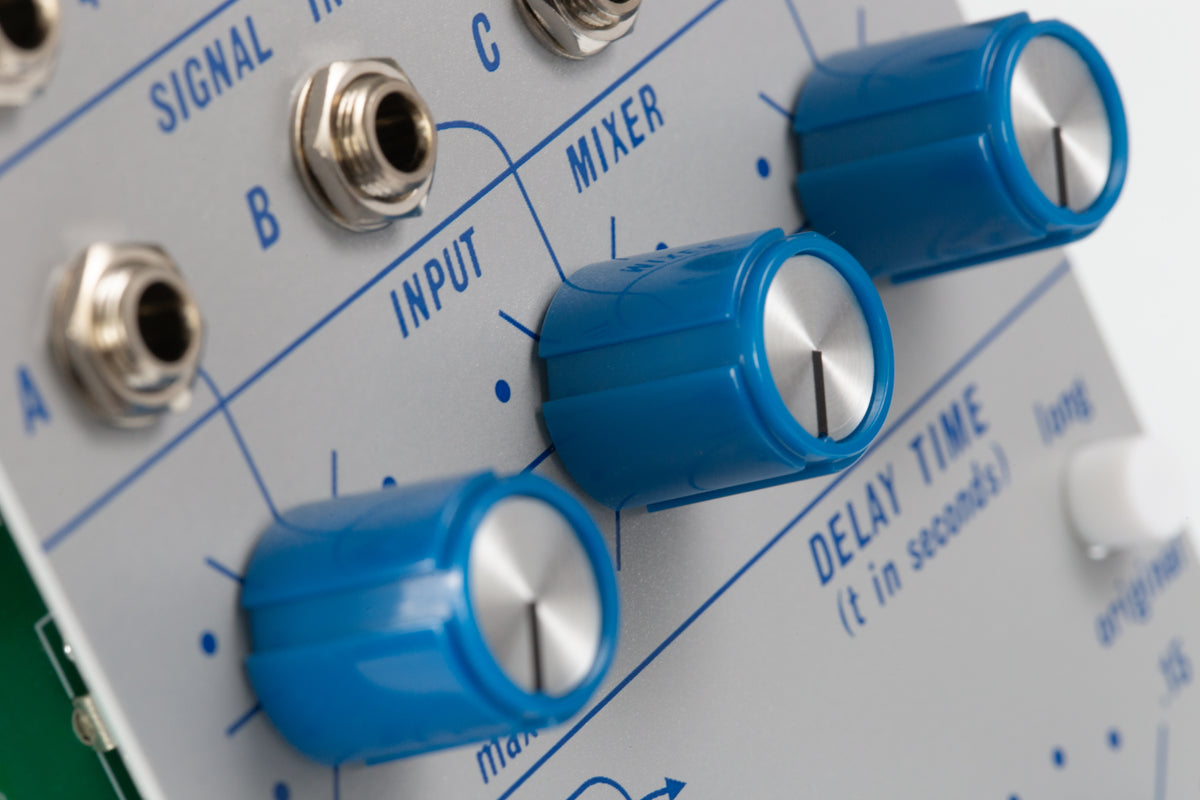

4. List to both original signal and delayed signal. Experiment with different delay rates with the Main Rate Knob.
5. Now take a dierent tap output and send it to channel B of the 277t
6. Slowly increase the volume of channel B on the 277t to produce a feedback effect

Specifications:

Size: 16 HP

Depth: 32mm

Power: +12V 112mA / -12V 15mA
